The Routing matrix with Control at your fingertips for Installed Sound

Audio ToolBox AVBx7 Touch Control

With its touchscreen and rotary control, AVBx7 Touch Control makes it easy to achieve interoperability of various audio protocols, build automation (standard feature) and security scenarii. AVBx7 Touch Control is a multi-format routing matrix with embedded mixer that simplifies navigation, monitoring or settings modification.
AVBx7

IS+r

Installation version :
    7 slots for integration of up to 7x AxC audio interfaces:
  • - Embedded audio matrix: 448 ch x 448 ch @48kHz,
  • - Two integrated redundant AC/DC power supplies,
AVBx7

SB+r

StageBox version :
    7 slots for integration of up to 7x AxC audio interfaces:
  • - Embedded audio matrix: 448 ch x 448 ch @48kHz,
  • - Two integrated redundant AC/DC power supplies,

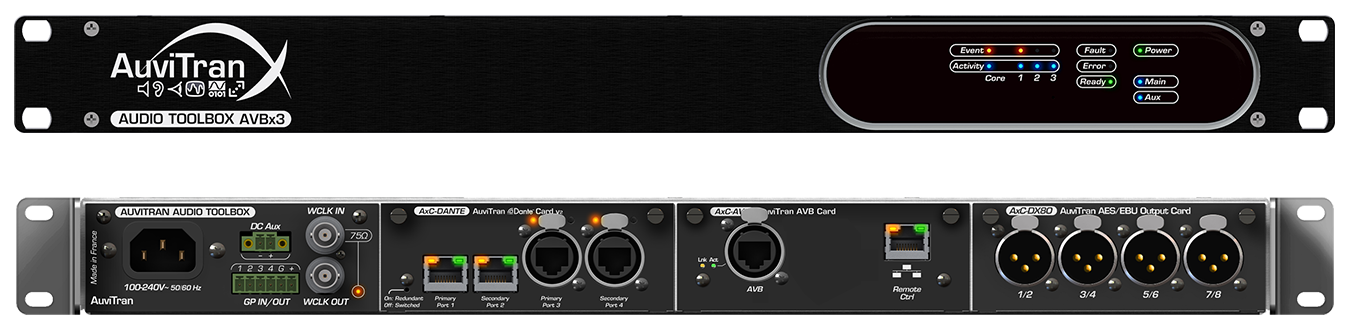

AVBx3

ISM+r

Installation version :
    3 slots for integration of up to 3x AxC audio interfaces:
  • - Embedded audio matrix: 192 ch x 192 ch @48kHz,
  • - Redundant management for external Aux DC PSU,
  • (Auxiliary redundant AC/DC PSU in option)

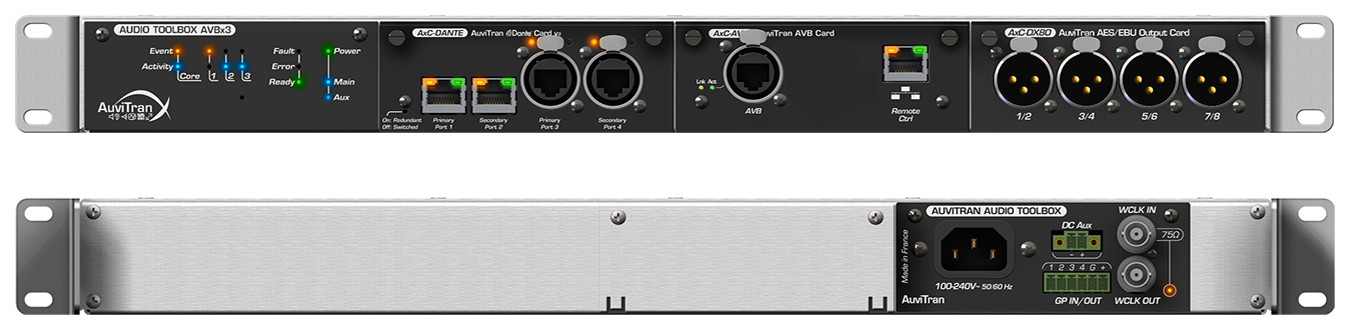

AVBx3

SBM+r

StageBox version :
    3 slots for integration of up to 3x AxC audio interfaces:
  • - Embedded audio matrix: 192 ch x 192 ch @48kHz,
  • - Redundant management for external Aux DC PSU,
  • (Auxiliary redundant AC/DC PSU in option)

Description

Smart, scalable and durable, the AVBx7 and AVBx3 boxes of the “Audio ToolBox” family allow networked audio technologies and traditional audio interfaces to be interconnected quickly and easily.

The AVBx7 and AVBx3 boxes allow the insertion of up to 7 or 3 “AxC-Card” audio interface cards respectively. They are available in StageBox and Installation mode.
