Dante™ & AES67 card

AxC-DANTE

64×64 Dante channels @ 48KHz or 32×32 @ 96KHz with 4x Gigabit ports switched or 2x dual redundant ports
AES67-ST2110-Ravenna card

AxC-AES67

64×64 AES67/Ravenna channels @ 48KHz or 32×32 @ 96KHz with 4x Gigabit ports switched or 2x dual redundant ports
CobraNet™ card

AxC-CN32io

16×16 CobraNet channels @48KHz on 2 redundant RJ45
AVB Interface card

AxC-AVB

32×32 AVB/Milan channels @48KHz or 16×16 @96KHz on ruggerized RJ54/XLR connector + 1x remote IP port on RJ45

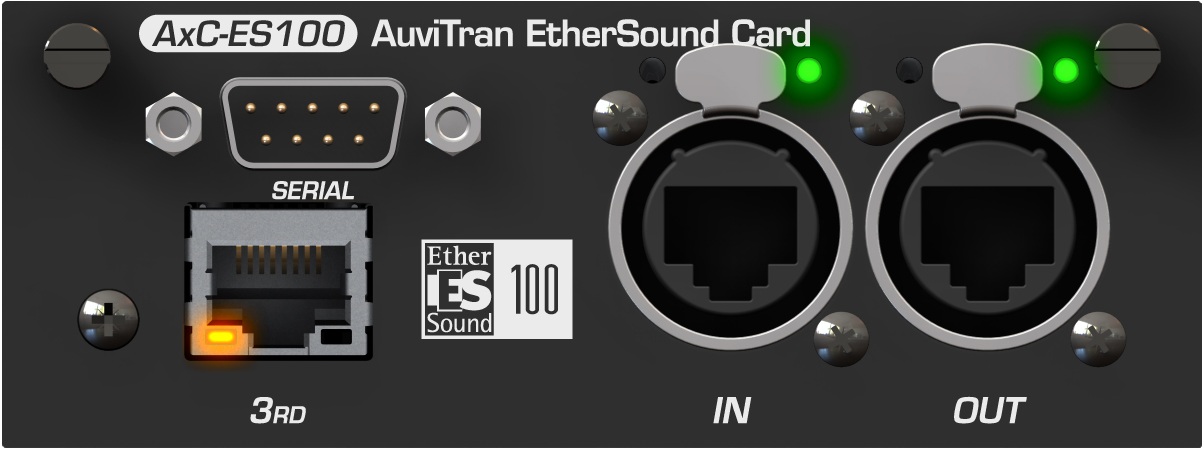

EtherSound card

AxC-ES100

Dual 5 port gigabit switch with 2xSFP cages for optional optical/RJ45 SFP modules
Gigabit switch card

AxC-SWD5G

Dual 5 port gigabit switch with 2xSFP cages for optional optical/RJ45 SFP modules
MADI card SFP cage

AxC-MADI/SFP

64×64 Madi channels @48KHz or 32×32 @96KHz 2x BNC + 1x SFP cage for optionnal monomode or multimode SFP module
MADI card

AxC-MADI

64x64 Madi channels @48KHz or 32x32 @96KHz 2x BNC and legacy multimode optical dual SC connector
ASRC/DSP card

AxC-ADSP

DSP: 64x mixers on 64 inputs @48kHz or on 32 inputs @96kHz EQ-16b, lim-comp, delay. ASRC: 64x64ch @48kHz or 32x32ch @96KHz.
AES/EBU input card

AxC-DX8i

4x AES3 stereo inputs with ASRC on 4x XLR connectors
AES/EBU output card

AxC-DX8o

4x AES3 stereo outputs on 4x XLR connectors
AES/EBU I/O card

AxC-DS32io

8x AES3 stereo inputs with ASRC and 8x AES3 stereo outputs on 2x SUB-DB25 connectors
ADATTM™ card

AxC-AT32io

16x ADAT inputs and 16x ADAT outputs on 4x TOS-Link connectors
Density mic/line input card

AxC-AS16M

16x Mic/Line analog inputs on 2x SUB-DB25 connectors
Density analog output card

AxC-AS16o

16x analog outputs on 2x SUB-DB25 connectors
High density I/O card

AxC-AS16Mo

8x Mic/Line analog inputs + 8x analog outputs on 2x SUB-DB25 connectors
Mic/Line card

AxC-AX4M

4x Mic/Line analog inputs on 4x XLR3 connectors
Analog Inputs card

AxC-AX4i

4x analog line inputs on 4x XLR3 connectors
Analog Outputs card

AxC-AX4o

4x analog line outputs on 4x XLR3 connectors
Analog I/O card

AxC-AE8io

4x analog line input and 4x analog outputs on Euroblock connectors
General Purpose IO card

AxC-GP16io

8x GPI + 8x GPO on EuroBlock connectors

Description

AxC cards can be inserted in any slot of an AVBx7 or AVBx3 box of the “Audio ToolBox” family to quickly and easily interconnect network audio technologies and traditional audio interfaces.

With 20 different audio interfaces and network technologies, AxC cards allow you to create a multitude of interconnection equipments, bridges, stage boxes and multi-network peripherals.
